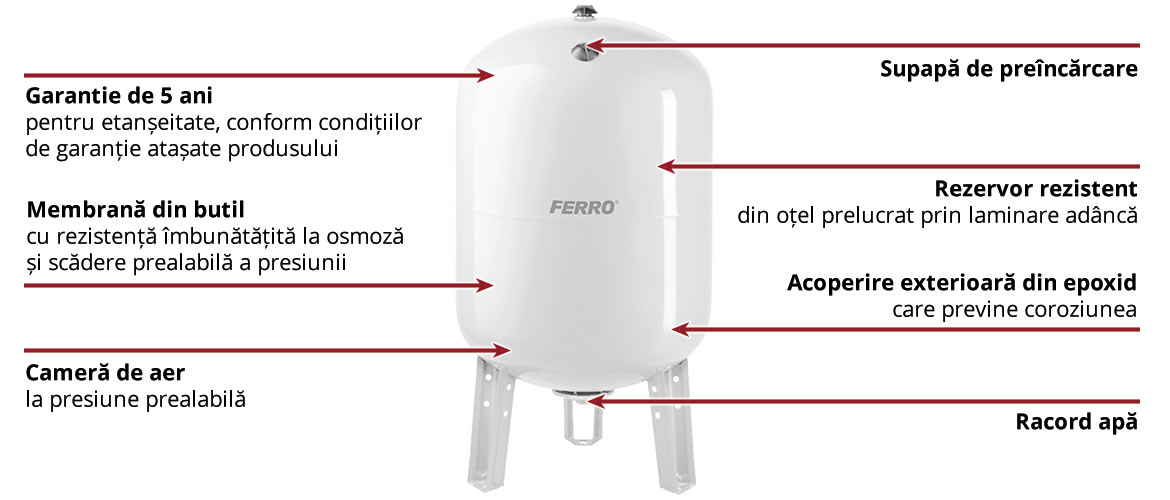

Vase de expansiune universale - pentru apa menajera sau instalatii de incalzire

Vase de expansiune universale - pentru apa menajera sau instalatii de incalzire

Universal use

  • In domestic hot water installations or C.O. as security against pressure increasing as changes occur medium temperature.
  • In utility water installations as a hydrophore tank

Technical parameters

  • Initial pressure – 3.5 bar
  • Media – water, glycol solution up to 40%
  • Operating temperature from -10°C to 100°C
  • Maximum working pressure: 10 bar
  • Range of offer: 5 – 300 l
  • Removable butyl membrane

Advantages

  • Use of butyl membranes - compared to EPDM membranes are several times more resistant to the phenomenon of osmosis, i.e. the penetration of air into the medium.
  • Maintaining the initial pressure at the appropriate level translates into longer membrane life.
  • Reducing contamination of the heating medium air means less influence on the others elements of the installation and thus contributes to it long-lasting and effective work.
  • Connection flange made of high-quality material AISI 304 stainless steel – ensures optimal connection in all working conditions
  • 5 years warranty for tightness, in accordance with the conditions warranty included with the product.
  • The dishes are certified by the National Institute of Hygiene.
